Automatic pre stretch film rewinder

Fully automatic Prestretch rewinder with oscillation edge is designed for the conversion of Prestretched stretch film products with less operator need. Machine can be supplied by different width from 600mm (24") to 2000mm (80") Multi option finished roll production. Soft roll,tight roll,hemmed edge roll or oscillated roll

Machine is be able to role as a multi-fucntional automatic high speed stretch film rewinder if buyer wants to switch the function by switch off the pre-stretch roller ststem by set on the machine front LCD touch screen.

Fully automatic Prestretch rewinder with oscillation edge is designed for the conversion of Prestretched stretch film products with less operator need. Machine can be supplied by different width from 600mm (24") to 2000mm (80")

It is for the conversion of master rolls of stretch film into prestretched rolls up to 300mm in diameter on a designed of different core diameters,1.5/2/3’’ etc.

This machine features automatic core loading, film attachment to paper core, rewinding to set length and film cut off and automatic removal from the machine to deliver to the receiving system.

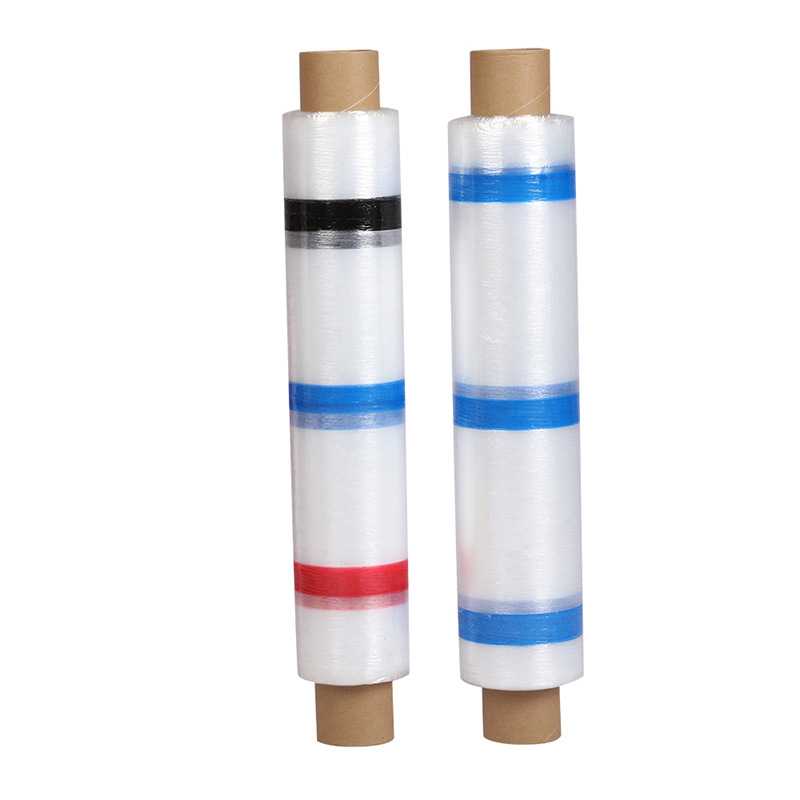

Multi option finished roll production. Soft roll,tight roll,hemmed edge roll or oscillated roll

Machine is be able to role as a multi-fucntional automatic high speed stretch film rewinder if buyer wants to switch the function by switch off the pre-stretch roller ststem by set on the machine front LCD touch screen.

Mother roll pneumatic lift system

Lateral film adjustment & optional oscillation&Optional Hemmed edge

HMI ergonomics touch screen in front of machine for free setting

Four pre-stretch roller give a adjustable stretch ratio of up to 300%

Inverter controlled motor for free speed adjustment

Variable speed drive giving the machine capability of up to 650 metres /per minute for prestretch,800m/minute for standard stretch rewind.

PLC Programmable electronic length counting meter

Automatic paper core feed hopper & paper core loading system

Automatic film cut off & film attachment.

Main Specification:

Name:Fully Automatic Prestretch Rewinder With Oscillation Edge

Model:PPD-APRO600

Maximum mother roll width 600mm

Maximum mother roll diameter 500mm

Mother roll inner core diameter:76mm

Rewind roll inner diameter:1.5/2/3inch

Rewind roll outer diameter:max300mm

Prestretch Rewind speed:max 650m/min

Standard stretch rewind speed:max 900m/min

Voltage:220/380/415V,3ph
