PPD-MTSR1100
-

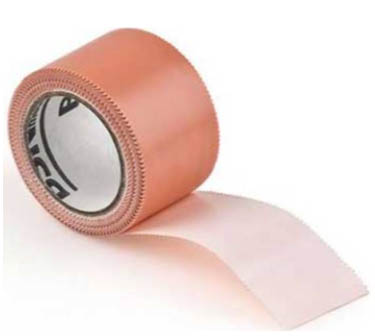

Medical tape slitter rewinder is our special design model that slitter rewinder all kinds of adhesive medical tape with or without sawtooth.
Features:
1. Adopt four-axis automatic exchange coiling and continuous coiling to improve work efficiency.
2. Frequency conversion stepless speed regulation, equipped with three-stage counter, can automatically decelerate and stop when running at high speed.
3. The unwinding tension adopts pneumatic brake control, and the rewinding tension adopts dual control. It is equipped with a clutch and an independent sliding device for the rewinding shaft, and the tension can be adjusted freely.
4. Equipped with arc-shaped stretching rollers, which can effectively stretch the substrate.
5. (Optional) Automatic labeling function, strip stationery tape function.
Machine data:
Machine name: Medical tape slitter rewinder
Machine model:PPD-MTSR1100
Machine width:1100mm
Unwinding diameter:max 800mm
Slitting width:min 12mm
Rewinding diameter:
(25mm shaft)4 shafts exchange:max 75mm
(76mm shaft)4 shafts exchange:max 150mm
(25mm shaft)2 shafts exchange:max 320mm
Machine speed:0-130m/min
Machine size:2450*1250*1450mm
Machine weight:about 1100kg
Note:Different size can be customized as buyer requirement.(1300mm or 1600mm or others)
