Stretch film rewinding machine

Automatic cling film and stretch film rewinding machine is an upgraded model for multi-funcitonal converting cling film and stretch film at one machine.

Machine is PLC man-machine interface communication program controll+LCD touch screen+Inverter control speed adjustment for simple operation,very user friendly.

It is ideal for a converting factory to have the task of PVC and PE cling film rewinding,PE stretch wrap film rewinding at the same time,the operator can easiler switch the the different rewidning jobs from the one to anothers.

With the unique design for the pressing roller system,After rewinding,the roll looks very smooth and neat.the PVC cling film will be transparent after a few days.

Technical Data:

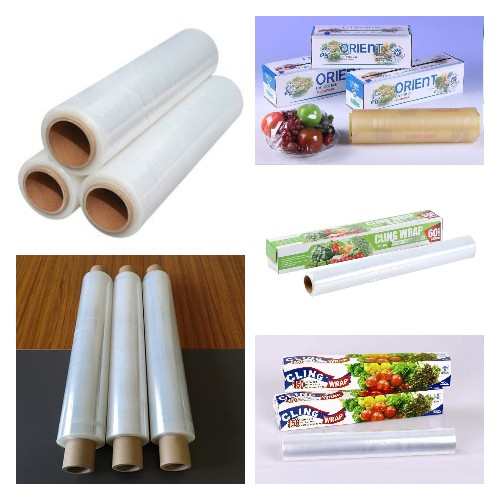

Material:PE stretch film,cling film,PVC cling film

Mother roll maximum width:500mm

Mother roll inner diameter:76mm

Mother roll max outer diameter:450mm

Rewind roll total width:200-500mm

Rewind roll maximum out diameter:160mm

Rewind roll inner core diameter:25/38/50/76mm optional

Speed:max900m/minute

Main Power:4KW
