Coreless pe coated food paper rewinder

Automatic coreless parchment rewinder with auto labelling is a high-end roll material processing equipment integrating ultra-high efficiency, automatic roll changing, coreless rewinding process, automatic labelling and intelligent unloading. Machine is specifically optimized for the smooth surface, low coefficient of friction, and slippery characteristics of materials such as silicon paper,parchment paper(glassine paper), and is widely used for high-volume, high-quality rewinding of release paper, self-adhesive backing paper, and food packaging paper.

Features:

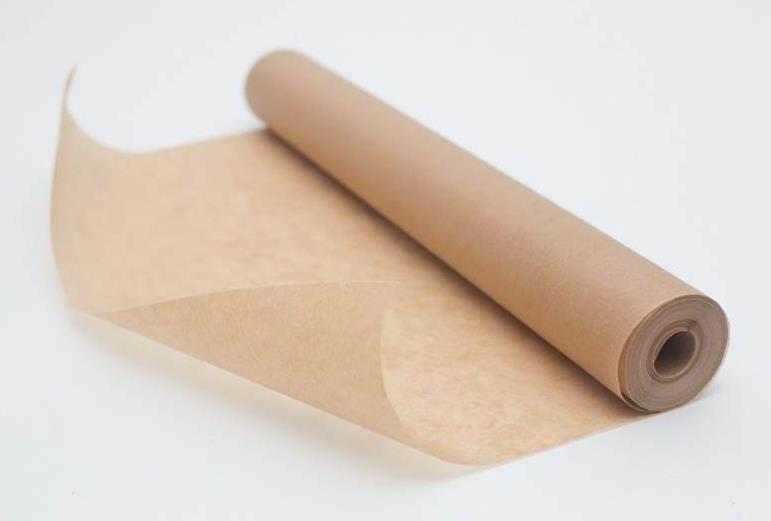

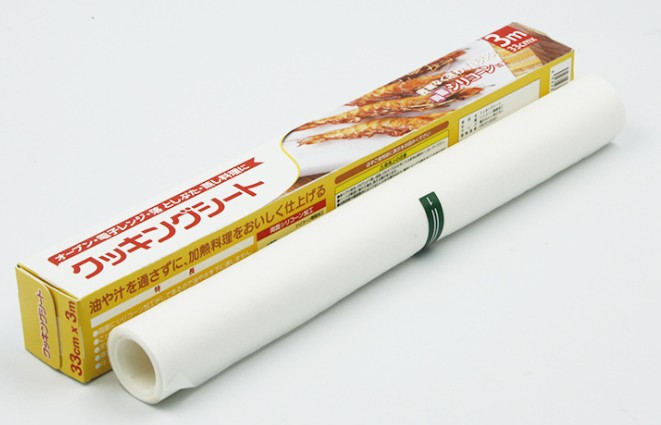

1. Suitable Materials: 30-100g/㎡ PE coated paper, parchment paper, silicon paper, self-adhesive paper, release paper, kraft paper,wax paper,butter paper etc.
2. Automatic End Labeling: After each roll is wound to the set length, the machine automatically cuts it and simultaneously and accurately affixes an identification label to the end of the finished roll, achieving integrated operation.
3. Automatic Finished Product Unloading: The machine integrates a robotic arm unloading mechanism. After the finished roll is wound up, the robotic arm automatically grips the roll and unloads it from the winding shaft, placing it in the finished product collection box, more convenient.
4. Touch Screen& PLC Control:Machine is controlled by a PLC programmable controller, achieving automatic meter counting and automatic finished roll production calculation functions. Parameter settings are intuitive.

Main Data:

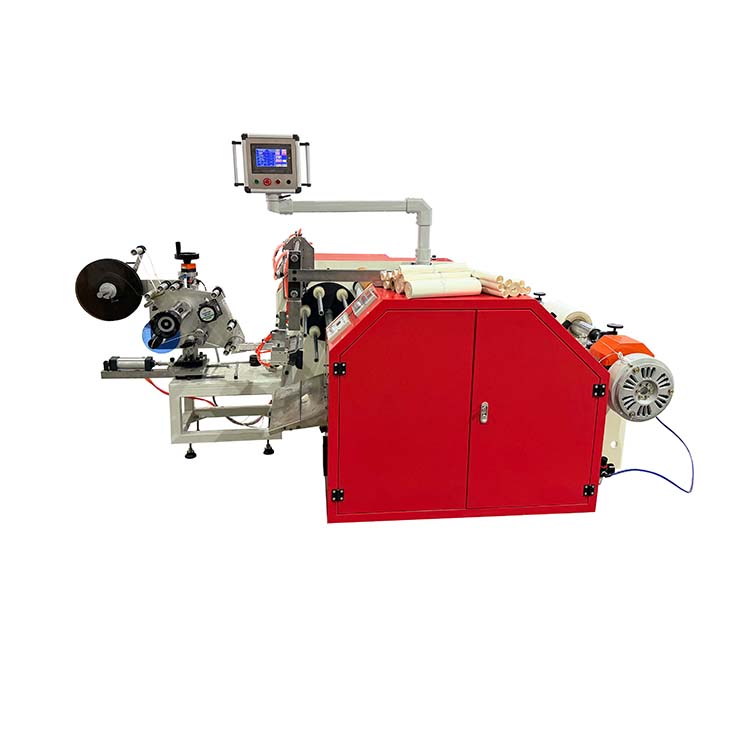

Name: Automatic Coreless Parchment Rewinder With Auto Labelling

Model: PPD-G450L

Width of unwinding roll: max 450mm

Outer diameter of unwinding roll: max 600mm

Inner diameter of unwinding roll: 76mm (3-inch air shaft)

Inner diameter of rewind roll: coreless 25mm

Length of rewind roll: max50 meters

Speed: max 70m/min

Voltage: 220/380/415/450V, 50Hz option
