Aluminium foil food paper rewinder

A4 paper sheeting machine is a high-precision cutting device for converting roll paper into sheet paper. It typically employs a flat-blade or rotary-blade structure. Its core function is to first slit wide rolls of raw paper into multiple narrow strips using longitudinal cutters (circular blades), and then cut them to a fixed length using a cross-cutting mechanism to produce individual A4/A3 sheets.

Features:
1. Pneumatic feeding and magnetic powder brake for tension control.
2. Mainstream models use servo motors to control fixed-length cutting; the cutting length is set via a touchscreen.
3. Automatic Stacking: Cut A4 paper rolls are automatically counted and pushed to the stacking platform by a conveyor belt.

Main Parameters:

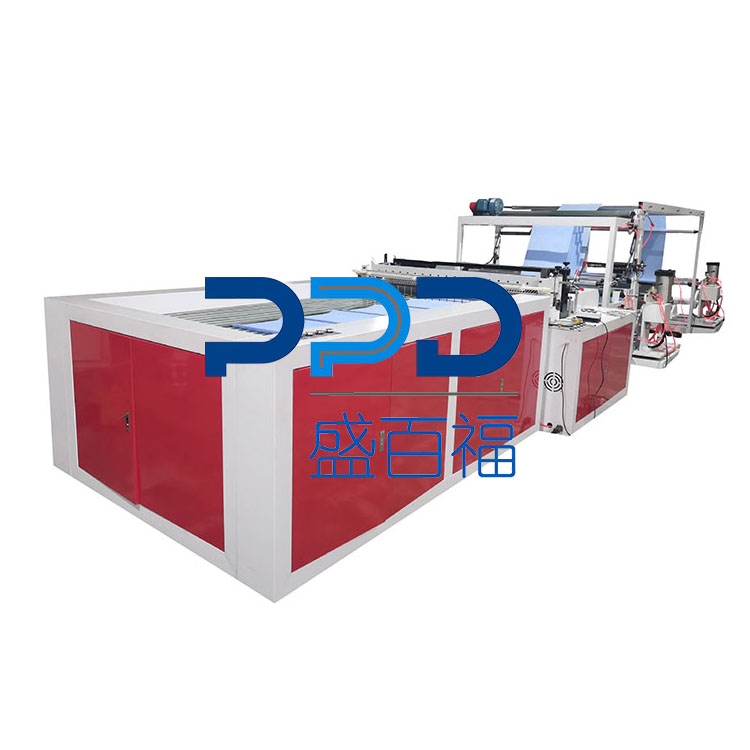

Name: A4 Paper Sheeting Machine

Model: PPD-A4PSM950

Paper gram weight: 20-350gsm

Unwinding diameter: Maximum 800mm

Cutting width: Maximum 950mm

Cutting length: Maximum 1200mm

Cutting speed: 40m/min

Stacking height: 300-800mm

Voltage: 220V, 50Hz

Power: 5kw
