Kitchen foil film roll rewinder

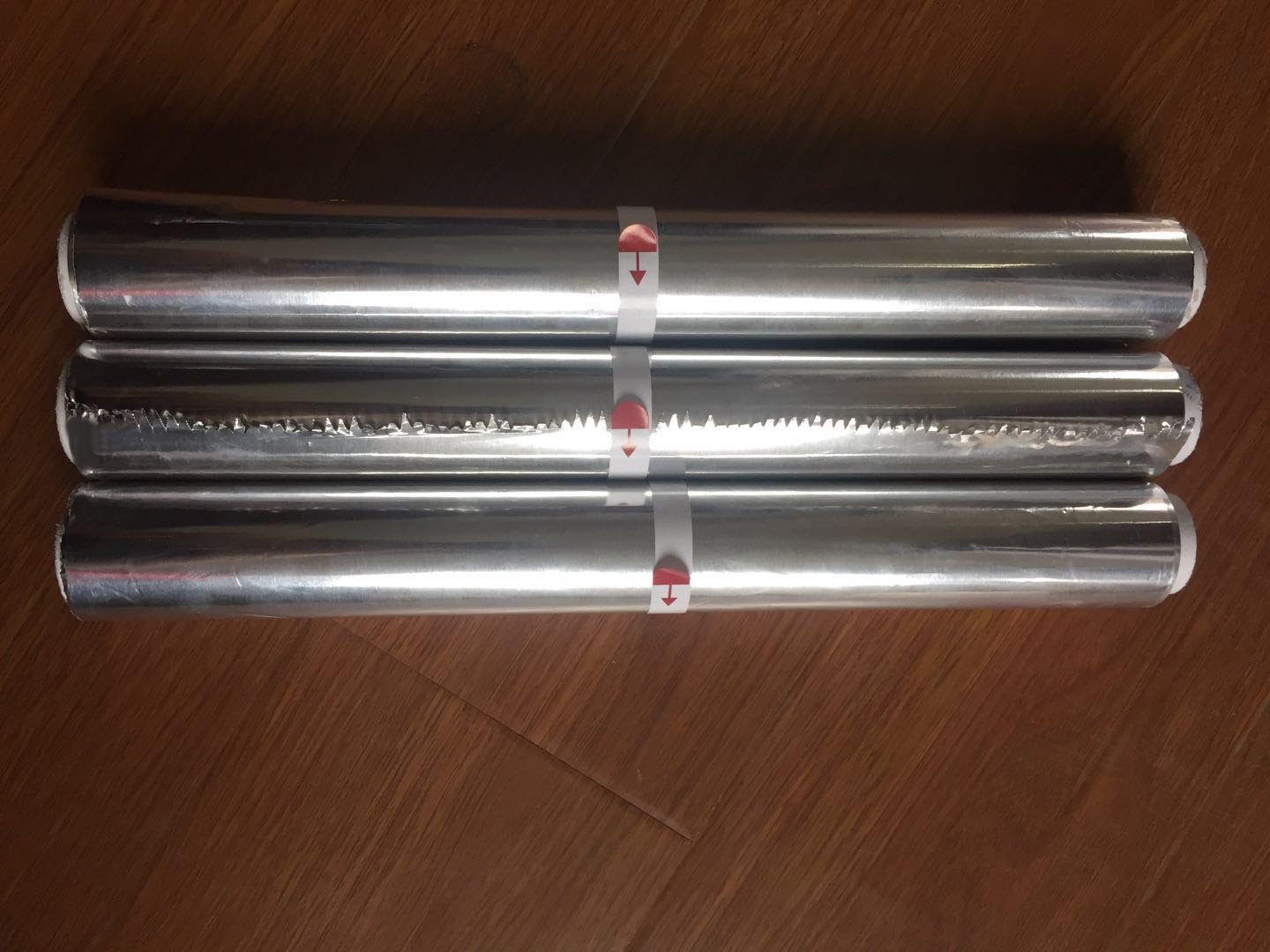

Fully automatic aluminium foil rewinding machine with auto labelling attachement is used for rewinding of kitchen foil jumbo roll into small roll with auto labelling can easily find the begining of the roll.The aluminium foil roll is widely used in food, packaging, medicine, hotel, household,restuarent etc.
This model is automatic model,simple operate,and low cost,no waste and high efficiency.

 Features:

1.Feeding material, rewinding, feeding paper core,automatic gluing,automatic labelling.

2.The inflatable shaft system fixed the raw material and keep the material tight and stable,two sizes can be choose,76mm or 152mm.

3.Horizontal Alignment System that keeps the machine steady and runs quiet.

4.The size of paper core can be choose, like 25mm,30mm,35mm,38mm,40mm etc..

5.Frequency control, the speed will show in the control panel.

6.PLC program and touch screen control,the length of finished product can be setting and display in the screen.

Main technical parameters:

Material thickness:0.0085mm-0.025mm

Max. unwinding width:500mm

Max. unwinding diameter: 600mm

Mother core diameter: 76mm/152mm(option)

Max. rewining width :500mm

Product core diameter:25mm/30mm/35mm(option)

Producing speed:2.5m/s

Length of product: 3m-150m

Power:4KW

Voltage:380V

Frequency:50HZ

Weight:1800KG

Machine dimension:3600 x 1400 x 1910mm（LxWxH）

NOTE:Different sizes can be customized.
