Automatic stretch film rewinder

Fully auto 3 shaft turret stretch film rewinder is greatly improved the production than the conventional model by 30%.
With programmed PLC to control the next paper core clamping when the rewidning roll is on process,the waitting time during the paper core changing,and the cutting off the finished roll is greatly saved the time due the new system of the cutting method from the button to raise the receiving plate at same time.
The maximum prodution speed is at 1500meter per minute as considered to be world top range of high speed rewinder in Europe market.
Machine is with SGS certificate,it pass CE safety requirement.

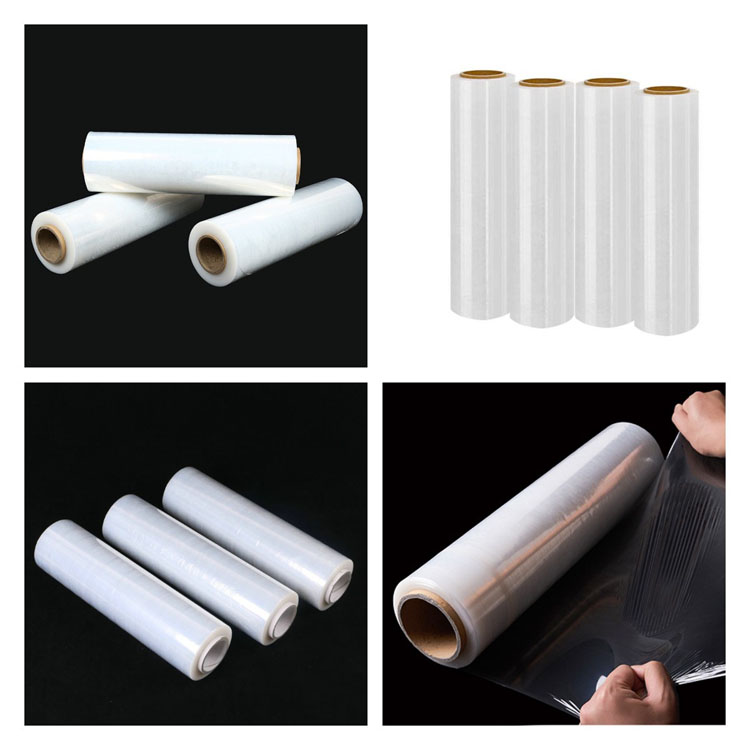

It is multi-purpose to meet rewinding purpose for PE stretch film,parreet stretch,indureial stretch,machine roll,hand roll,PE food cling film,PVC food stretch wrap etc.

Main Specifications:

Material:Stretch/cling film

Master reel width:300-500mm

Master reel ID:3inch

Master reel OD:500MM option

Rewinding roll width:max 520mm

Rewinding roll core diameter:1/1.5/2/3inch

Rewidning length setting:5-900meters

Speed:max1200m/min

Total power:4Kw

Voltage:220/380/415/450v,3phase

Net Weight:1.1 Ton

Air supply;0.3Mpa

The individual request is acceptable.
