Pre stretch film slitting rewinding machine

Automatic prestretcher film slitter rewinder machine is our updated new model for automatic high speed pre-stretch,and stretch film slitter&rewinder,it is with 2 rewinding station at 4 shaft for high speed of change the core by simple operation with inverter motor control. Machine can work as multi-purpose for pre stretch slitting mode,pre stretch rewinding mode.

Semi auto prestretcher slitter rewinder is with 2 shaft rewinding for high speed of change the core by simple operation with inverter motor control.

Machine can work as multi-purpose for pre stretch slitting mode,pre stretch rewinding mode.

To skip of the pre-stretch control roller system,the machine can role as a standard stretch film slitting mode,and standard stretch film rewinding mode.

In total,the machine conclude 4 different function into 1 machine for value added with cost effective.

Machine is with inverter and digital control panel,it is very user friendly,ideal for volumn production for Polythene/LLDPE stretch film,PE stretch cling wrap,PVC stretch cling film,Pre-stretch roll etc.

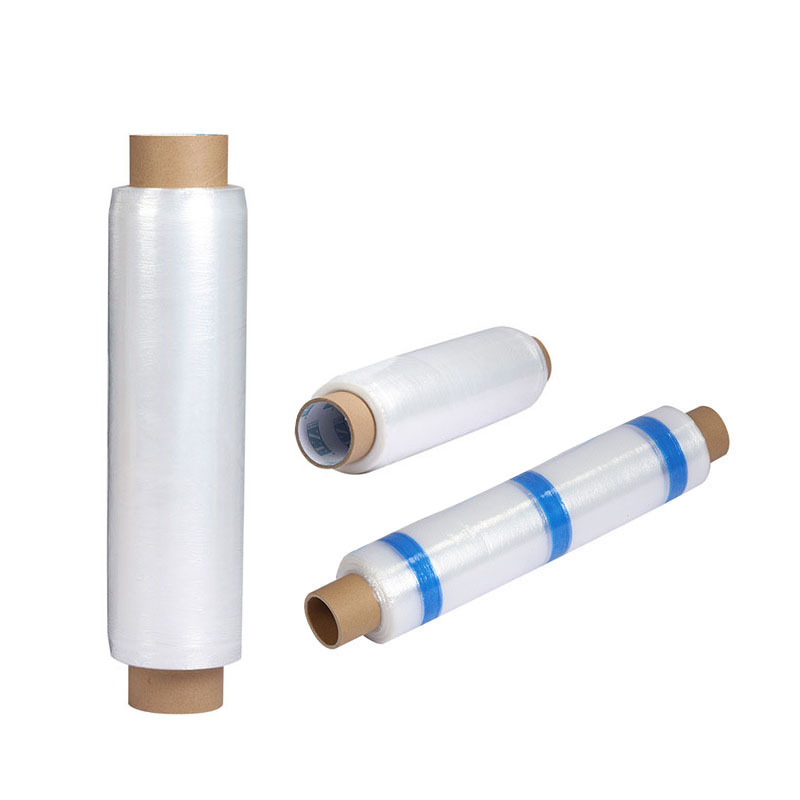

After our machine slitting&rewinding,the stretch film roll/cling film roll become more smooth/neat.

Technical Data:

Name:Semi Auto Prestretcher Slitter Rewinder

Model:PPD-SAPR600

Unwinding roll width: 600mm(max)

Unwinding roll max diameter: 500mm(max)

Unwinding paper core diameter: 3 inch(76mm)

Rewinding roll diameter:180mm(max)

Rewinding roll width: 50mm-600mm

Rewinding paper core diameter: 1.5/2/3inch

Rewind&slit speed:  max650m/min(max)

Voltage:220/380/415V
