Stretching film rewinder

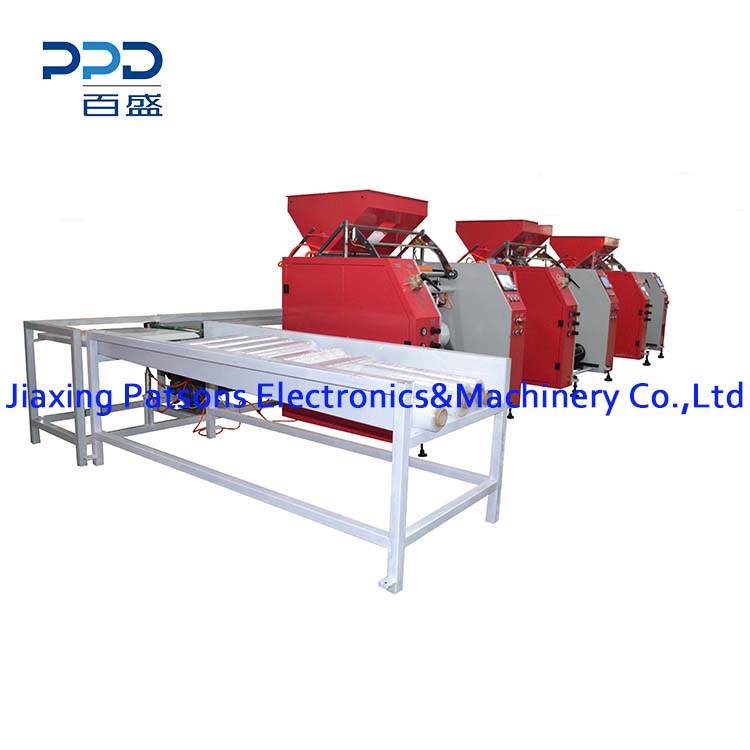

Automatic PE stretch warp film rewinder works with PLC program,Touch screen operating,user friendly.The hopper of this model can load up to 20pcs of paper core,the machine will alarm when there is no paper core.Machine stop once there is no paper core in hooper.
By our special designed of automatic convery belt system,the the three machines out put products can be delivered to same area to be more convinient,for one operator can run maximum of 3 units of machine.

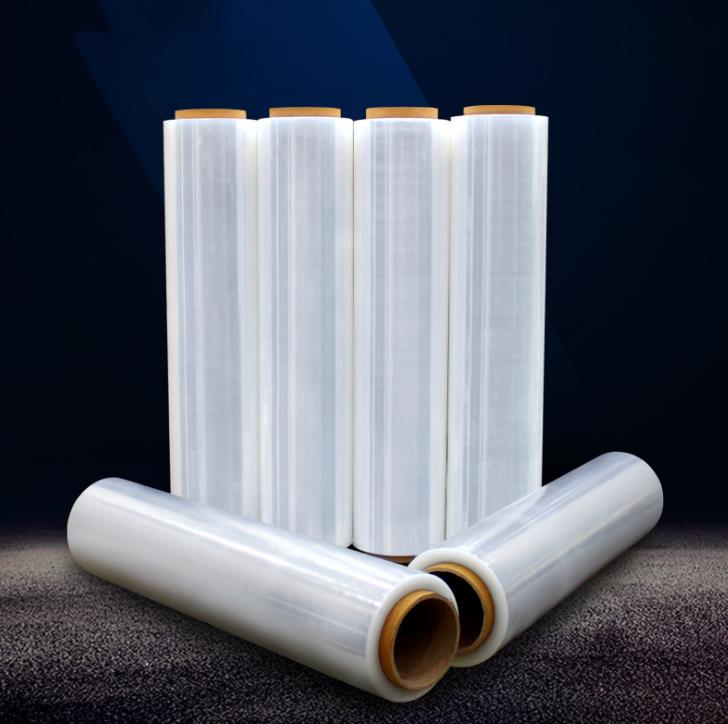

It is ideal suit for rewinding the any stretch film,pallet stretch wrap film,PE food wrapping film etc.

Technical Data:

Name:Automatic PE Stretch Wrap Film Rewinder

Model:PPD-HARW600

Unwind roll width:Max 600mm

Unwind paper core diameter: 3inch(76mm)

Unwind diameter: max 475mm

Rewind roll width: max 600mm

Rewind paper roll diameter: 1.5/2/3inch--Option

Rewind diameter: 160mm(max)

Rewind speed: 1200m/min(max)

Voltage:  220/380/415V

Power:  4.37kw
