Automatic high speed cling film rewinding machine

Automatic high speed cling film rewinding machine is upgraded technology from Italy,we have developed into better logical strecture.and much more practical,further more of cost effective.
It is with core auto loading,5 shafts auto exchanging for rewinding,the speed is double than other machine.Auto warning when no paper core.free setting for the rewinding length.
The control is of LCD panel consists of “PLC+ transducer+ signal switch ”. The main electrical components of high quality are imported. The performance of the machine is very stable and reliable .
The LCD panel is ergonomically design for easier operation and maintenance. It can be set as fully auto, semi auto and manual.

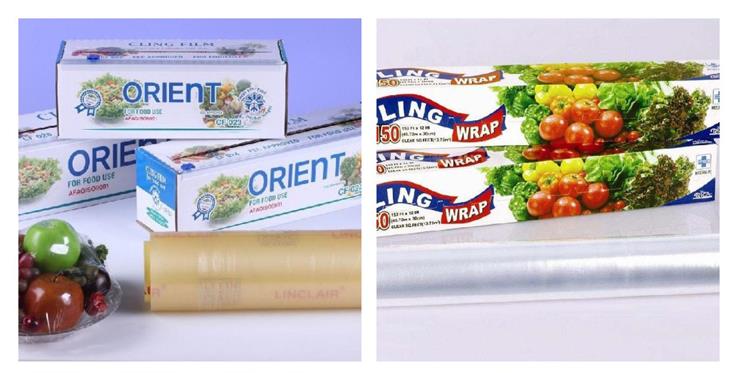

It is Ideal for production of the PVC food cling film roll,and PE stretch cling film roll for both film from film Blowing machine and film extruder machine.

Technical Data:

Name:Automatic High Speed Cling Film Rewinding Machine

Model:PPD-5SH400

Max mother roll width: 400mm

Mother roll core:3inch

Mother roll outer diameter:475mm

Finished roll core:1.5/2/3inch

Finished roll max outer diameter:180mm

Speed:Max 900m/min

Voltage:220/380/415V,50hz option

Power:6.5kw
