Aluminium foil food paper rewinder

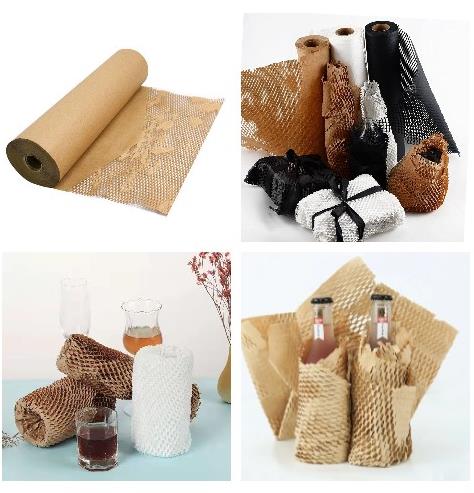

Honeycomb kraft paper cushion forming machine is suitable for die cutting honeycomb paper, wrapping paper,shock-absorbing kraft
paper, fish net paper from 70g to 120g.

Features：
1.The unwinding,cutting and rewinding in one process.
2. Main motor equipped with Inverter for speed regulation.
3. Tension controlled by magnetic powder brake and clutch.
4. Automatic meter counting device,automatically stop after it reaches the length you set.
5. Pneumatic cylinder to control the cutting mould up and down.

Main Data:

Name:Honeycomb Kraft Paper Cushion Forming Machine

Model:PPD-HKPM500

Max.width of mother roll:500mm

Max.diameter of mother roll:1500mm

Max.diameter of finished roll:500mm

Paper Core diameter(Rewind and unwind):1"/1.5"/2"/3" in rewinder and 3inch(76mm) in unwinder

Cutting Speed:120m/min

Total power:6kw

Voltage:380V,50hz,3ph
