Auto stretch film rewinding machine

Automatic 4 shaft cling film perforation rewinder is our latest design for rewinding of food cling film roll.

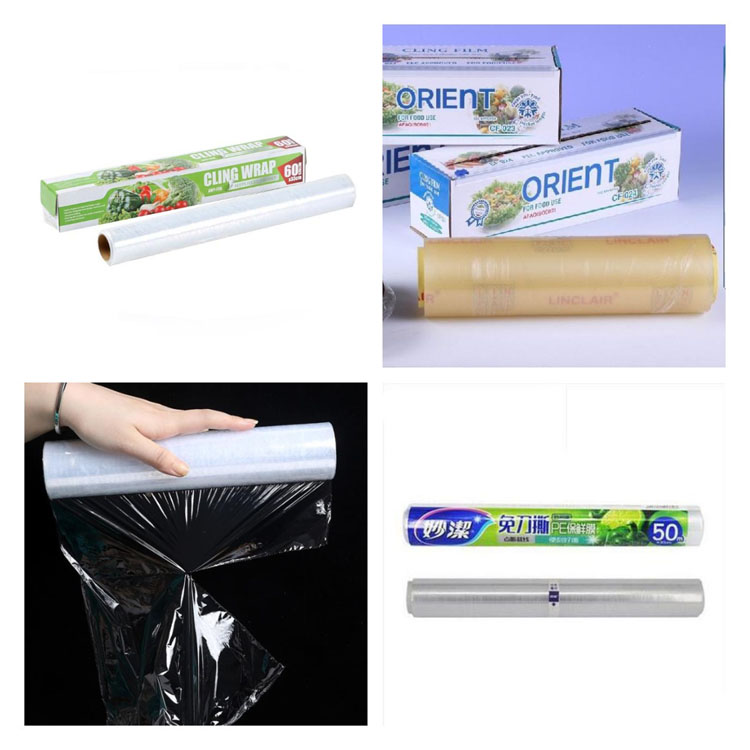

It integrates rewinding,perforation,counting and automatic disconnect functions together. It is mainly used for food PE stretch film,PE cling film,PVC cling film, which can be divided to small finished rolls from big rolls with the same width.

Features:
1.High degree of automation level, with PLC and HMI together with inverter control system,simple in operation.
2.Four shaft exchange,high speed rewinding,automatic paper change,high output.
3.Can do both standard roll and dot line roll rewinding.

Main Data：

Name:Automatic 4 Shaft Cling Film Perforation Rewinder

Model:PPD-4CFPR300

Mother roll width:300mm

Mother roll diameter:max400mm

Rewind roll width:max300mm

Rewind roll ID:30/35/38mm option

Rewind roll length:max300m

Speed:max8rolls(dot line roll),max12rolls(standard roll)

Voltage:220/380/415V option
