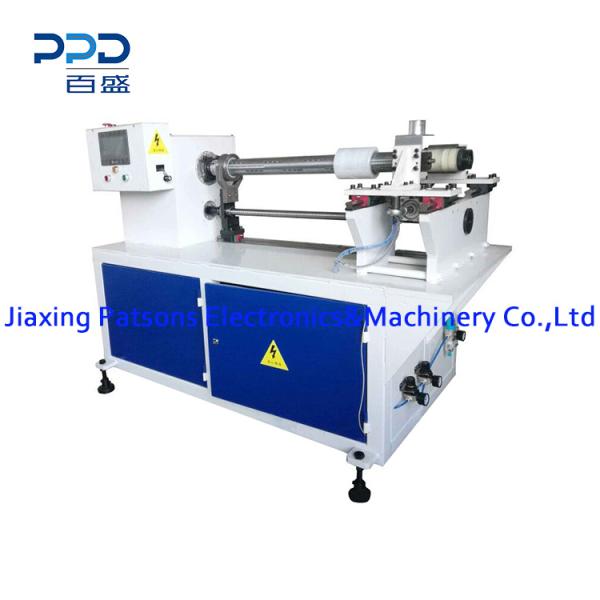

Air Shaft Stretch Film Slitter Rewinder

Air Shaft Stretch Film Slitter Rewinder

Air shaft stretch film slitter rewinder is our latest model of plastic film slitter rewinder.
The rewind roll is load on 3inch air shaft,easy to take off the finished roll,no need to take down the air shaft,more easily and safety.

Features:
1. The control is simple, easy to operate;
2. Two pieces of air shaft load on rewind roll,more stable and efficient.
3. The small rolls can be with 1", 1.5", 2" and 3" inner diameter paper cores.
4.Auto meter counting system



Main Data:
Name:Air Shaft Stretch Film Slitter Rewinder
Mode:PPD-ASSF500
Material:PE stretch wrap,PVC /PE cling film or other plastic film
Maximum width jumbo roll:500mm
Maximum diameter of jumbo roll:500mm
Inner diameter of jumbo roll:76mm
Width of sub roll:50-500mm
Maximum outer diameter of sub roll:300mm
Inner diameter of sub roll:1/1.5/2/3inch
Slitting&Rewinding speed:600m/minute
Motor power:1.5kw
Total power:3kw
Voltage:220/380/415V option
NOTE:Different sizes can be customized.
